Head-Mounted Laser Devices in Cervical Rehabilitation: A Technical Review
Richard Wheatley
Clinical takeaway: a head-mounted laser can provide immediate visual feedback during cervical sensorimotor exercise, but it is an adjunct rather than a diagnostic test. The evidence supports careful, repeatable use within a broader clinical assessment; it does not establish that one laser design or branded device produces superior outcomes.
What a head-mounted laser does

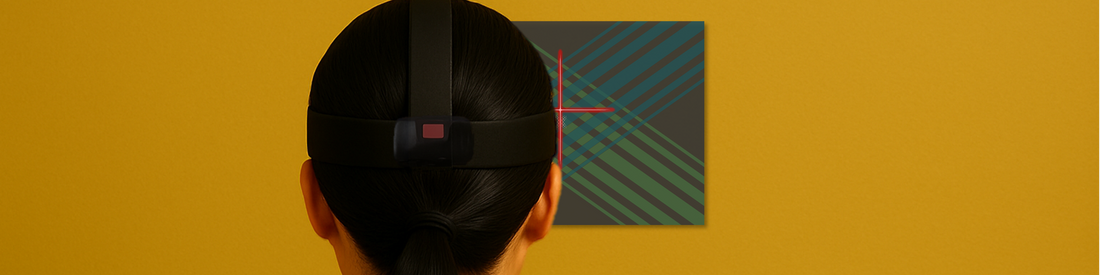

A head-mounted laser projects a point or crosshair onto a wall target. Small head movements create visible displacement, giving the person and clinician an external reference for direction, control and repeatability. The device does not identify the cause of an error, measure vestibular function or determine whether a person is safe to return to activity.
The visual cue can be used to practise returning to a reference position, tracing a controlled path or maintaining head position while the body moves. Results depend on the testing distance, target, starting position, movement speed, number of trials and calculation method, so the protocol should be recorded and repeated consistently.
What the evidence supports
A systematic review of cervical joint-position-error measurement found substantial variation between protocols and measurement properties. This supports using a standardised method and interpreting repeated results alongside symptoms and the wider cervical, vestibular and neurological examination rather than applying a universal diagnostic cut-off.1
A small pilot study in people with cervicogenic headache reported improvements following a programme that included laser-guided movement-control training. Because it was a pilot study and evaluated a programme rather than the laser in isolation, it should be treated as preliminary evidence rather than proof of a device-specific treatment effect.2
A 2025 systematic review reported that cervical sensorimotor training may improve pain, disability, joint-position sense, range of motion and balance in chronic neck pain. The included interventions were broader than head-mounted laser exercise, so the review supports the rehabilitation approach but does not establish superiority of a particular laser system.3
Clinical applications
- Head repositioning practice: returning to a reference target after a defined movement, with the same distance and setup across trials.
- Controlled range-of-motion tasks: tracing shapes or paths at a comfortable speed while monitoring movement quality and symptom response.
- Postural and balance tasks: maintaining a visual target while the body or support surface changes, when this is appropriate and safe.
- Progressive sensorimotor exercise: reducing visual feedback, changing target complexity or adding a secondary task only after the basic task is controlled.
Point and crosshair systems
A single point makes displacement easy to see. A crosshair can add horizontal and vertical references that may help with orientation and tracing tasks. There is not sufficient comparative clinical evidence to claim that one projection pattern produces better rehabilitation outcomes. Choice should therefore be based on the intended task, visibility, fit, calibration and ease of repeatable use.
HeadX options
HeadX Kross provides head-mounted crosshair visual feedback without digital measurement or an app connection. HeadX Duo combines laser feedback with inertial sensing for objective movement measurements. Neither device replaces clinical judgement. The HeadX exercise hub provides graded task examples that clinicians can adapt to individual findings and tolerance.
Practical considerations
Check that the device is secure, the target is visible and the environment is clear of trip hazards. Establish a baseline before increasing speed, range, stance difficulty or cognitive load. Stop or modify the task if symptoms are substantial, prolonged or unexpected. Apparent laser error can reflect several factors—including understanding of the task, fatigue, visual strategy and setup—and should not be interpreted as a diagnosis on its own.
References and evidence review
- Measurement properties of cervical joint position error in people with and without neck pain: a systematic review and narrative synthesis.
- Impact of Movement Control Training Using a Laser Device on the Neck Pain and Movement of Patients with Cervicogenic Headache: A Pilot Study. Healthcare, 2023.
- Effectiveness of sensorimotor training on pain, cervical joint position sense, range of motion, balance, and disability in chronic neck pain: a systematic review. Heliyon, 2025.
This article is for professional education and does not replace individual clinical assessment.
