Current kit
Duo Neck

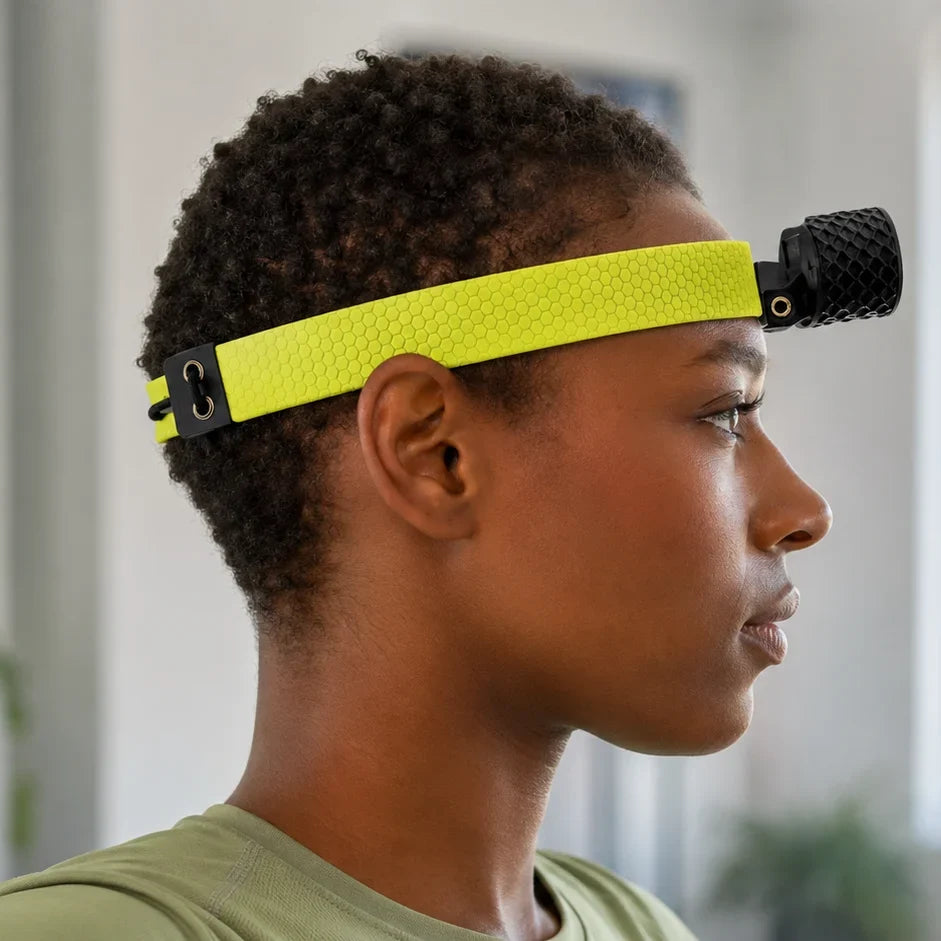

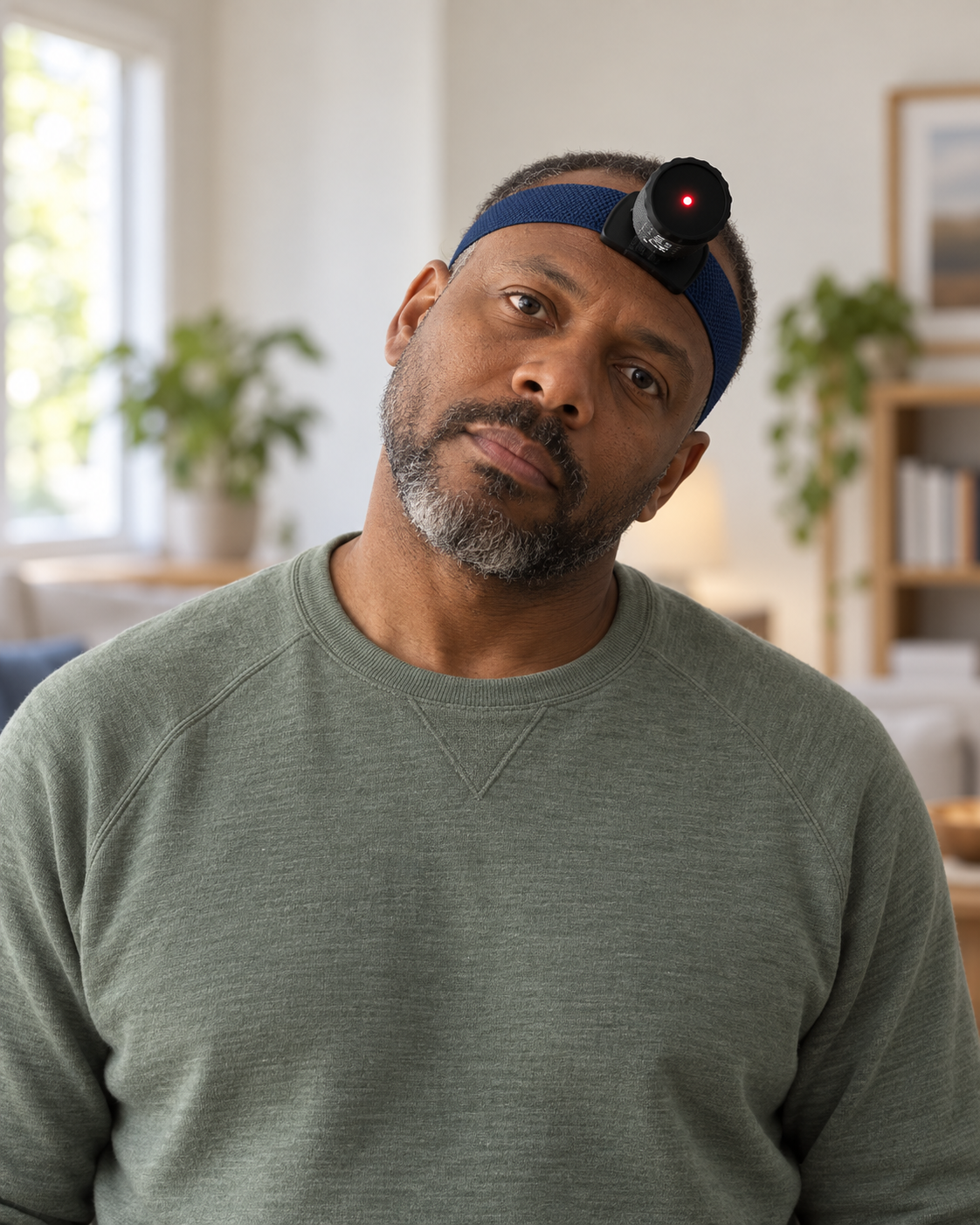

Built around cervical assessment: measure neck range of motion, joint position sense, and stability and control with a wipe-clean head strap included.
Choose the neck-focused kit available today, or see the broader body-area package planned for the future.
Current kit
Built around cervical assessment: measure neck range of motion, joint position sense, and stability and control with a wipe-clean head strap included.
In development
A planned separate package for clinicians assessing upper limbs, lower limbs and trunk movement across a broader caseload. Arm, leg and chest straps are intended to be included.
The current kit includes a head strap only. Arm, leg and chest straps are planned for the separate Duo Multi Limb product and are not included in today's Duo kit.
Record movement in degrees from a set reference. Keep device placement and the task consistent when comparing sessions.
Record, review and export in one app. Share PDF reports or CSV data without retyping results.
Give patients visible feedback with the built-in crosshair laser as they follow a path or return to a target.
INSIDE THE HEADX DUO APP
The current Duo kit includes the head strap for neck assessments. The app also has shoulder, elbow, trunk, hip and knee workflows, which require compatible mounting. A future Duo Multi Limb package is planned to include arm, leg and chest straps.
Swipe to see more
Swipe to see more

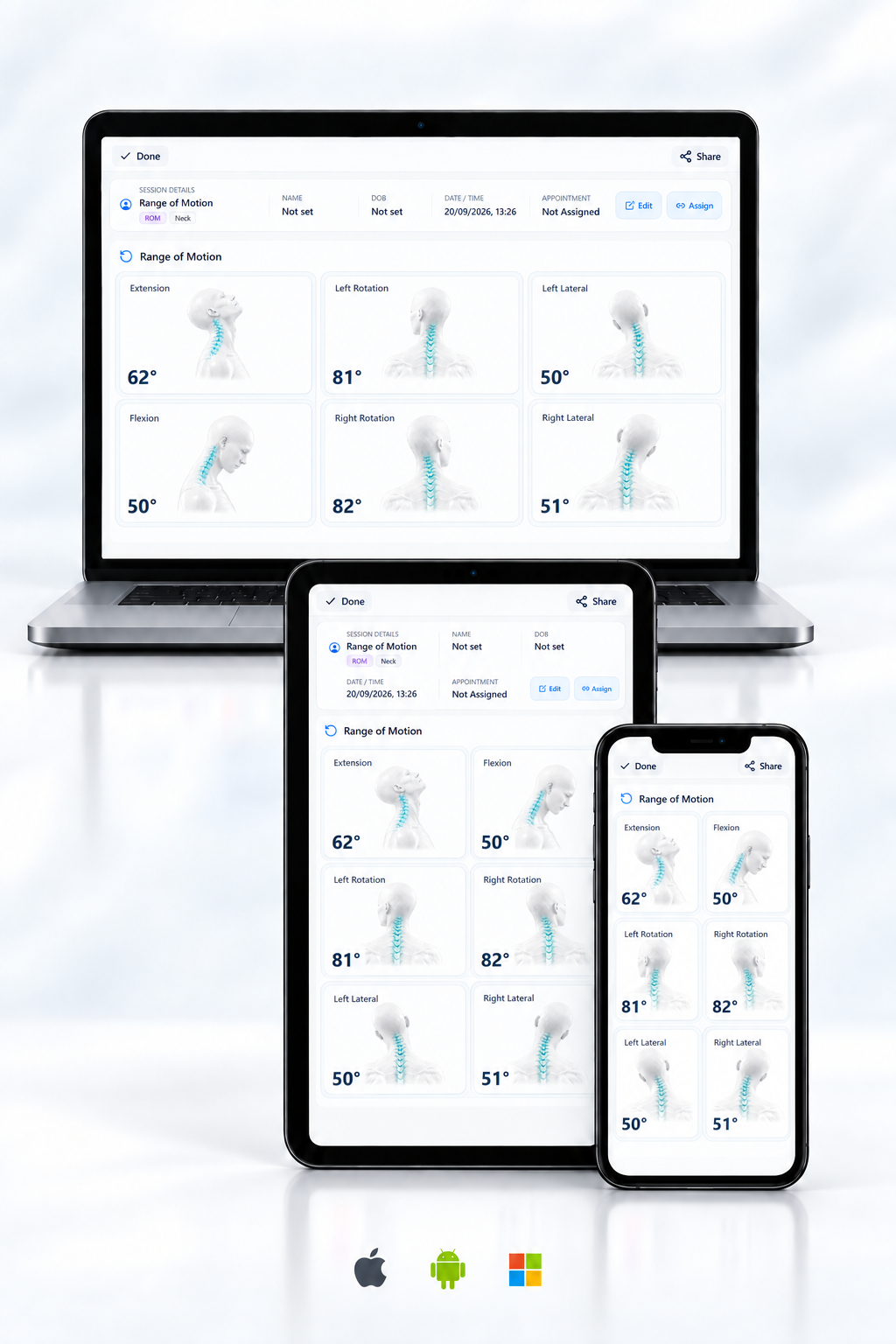

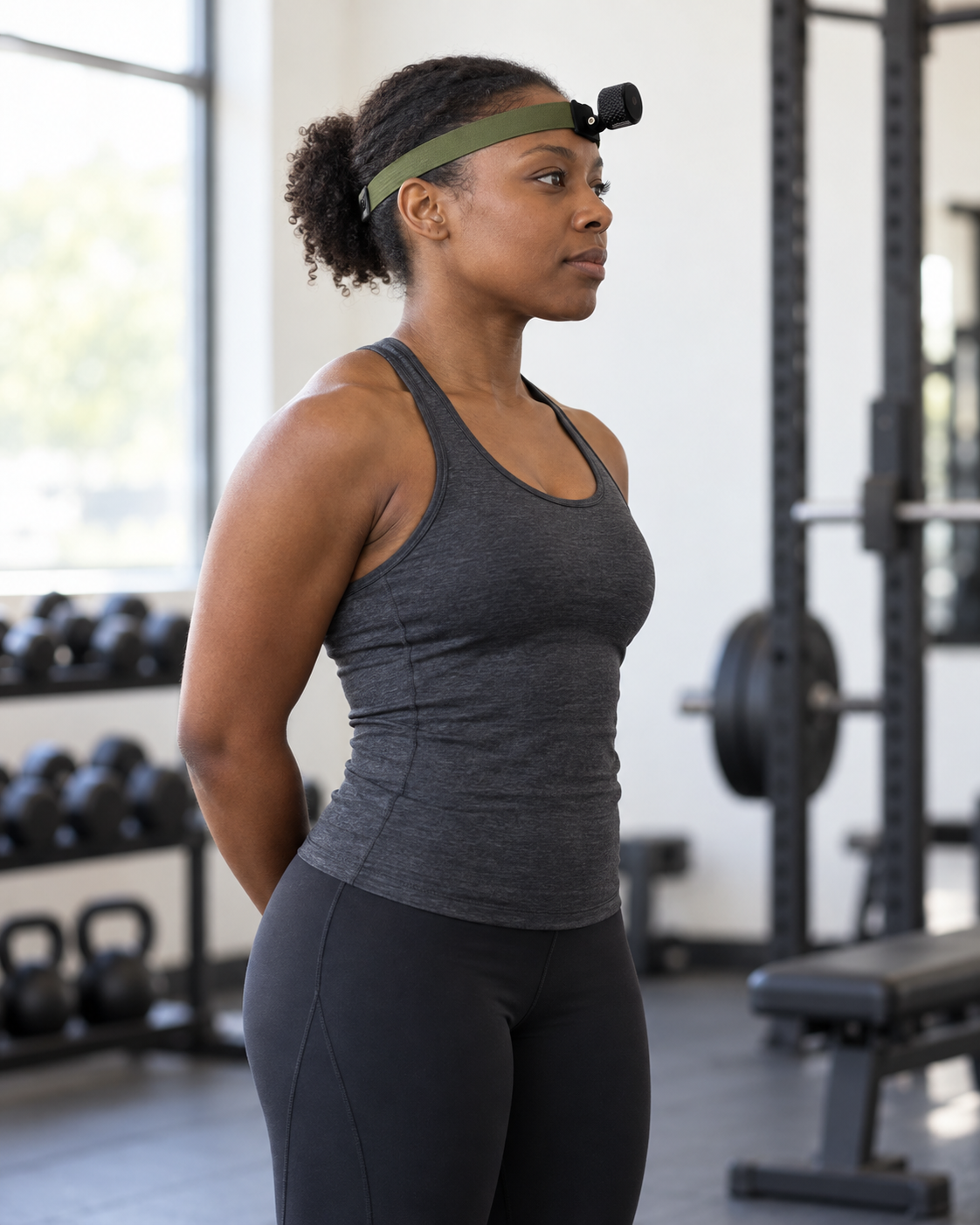

Set a starting position, then record neck movement in each direction.
HeadX Duo
Flexion and extension, left and right rotation, and left and right lateral flexion.
The saved summary shows the maximum angle recorded in each direction and the combined range where applicable.
Run an assessment on its own or group assessments into an appointment. Add optional participant and session details, save the record to history and return to the individual summary.
Share an individual assessment PDF or a combined appointment PDF. Structured CSV exports can include session, Range of Motion, Joint Position Sense, Stability and Control, and limb-trial results. Raw sensor CSV is available when Research Mode is enabled.
Duo records the task in degrees for professional interpretation; it does not assign a universal pass or fail score.

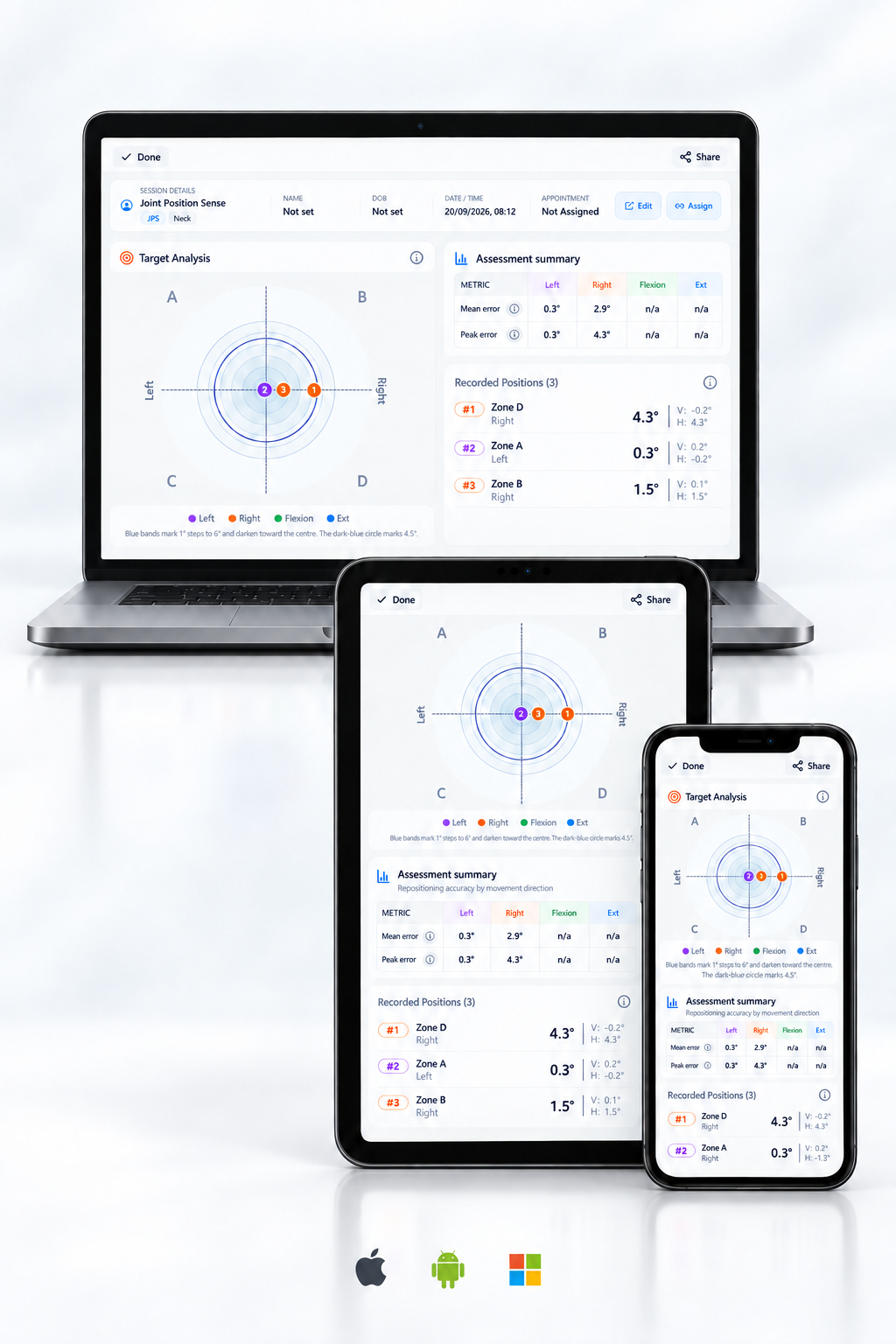

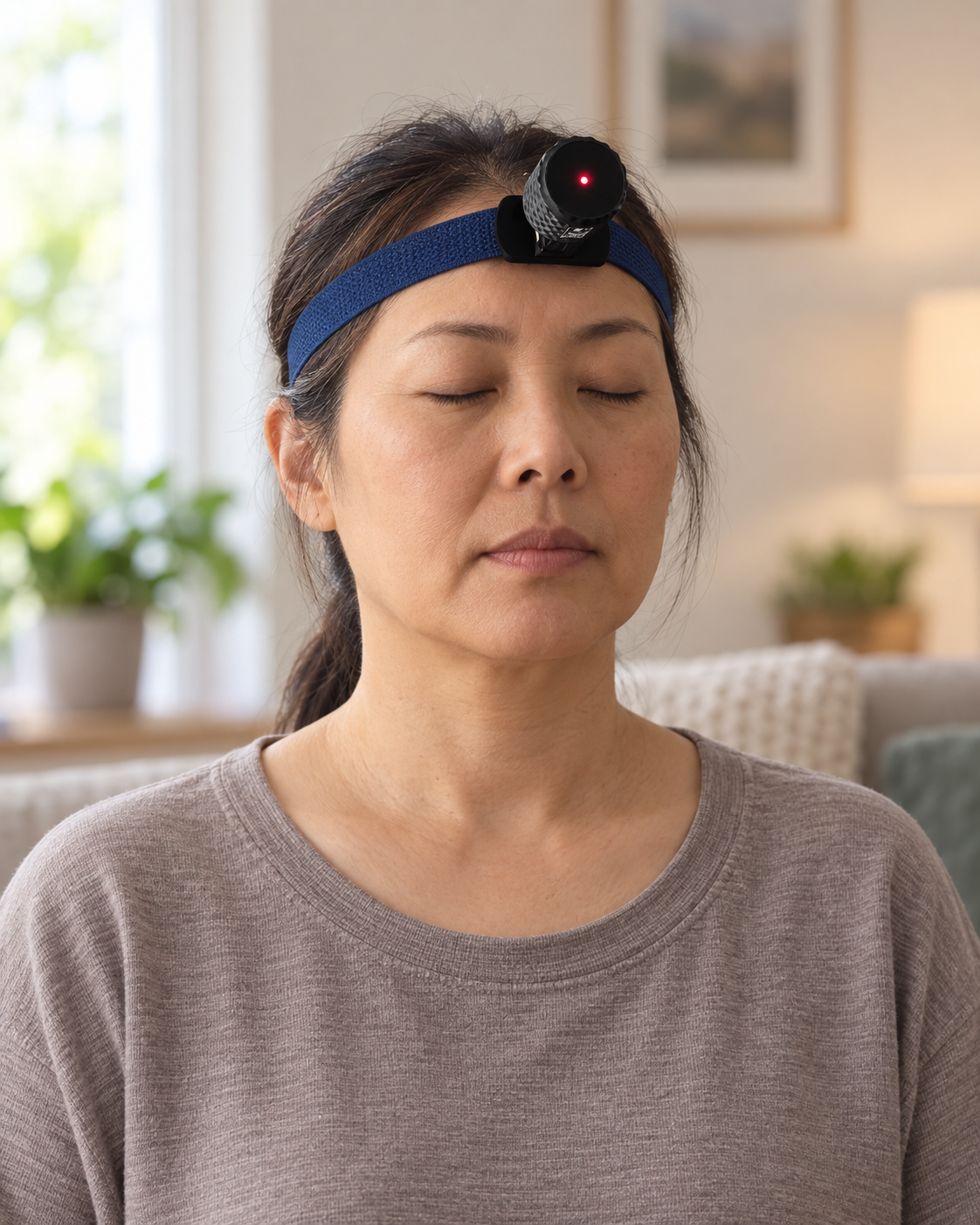

Set a reference, move away, then return without visual cues. Compare repeated attempts.
HeadX Duo
Run repeated return-to-reference attempts and group the readings by movement direction.
Review a target map of every attempt plus horizontal, vertical and overall angular difference, with mean and peak error.
Run an assessment on its own or group assessments into an appointment. Add optional participant and session details, save the record to history and return to the individual summary.
Share an individual assessment PDF or a combined appointment PDF. Structured CSV exports can include session, Range of Motion, Joint Position Sense, Stability and Control, and limb-trial results. Raw sensor CSV is available when Research Mode is enabled.
Duo records the task in degrees for professional interpretation; it does not assign a universal pass or fail score.

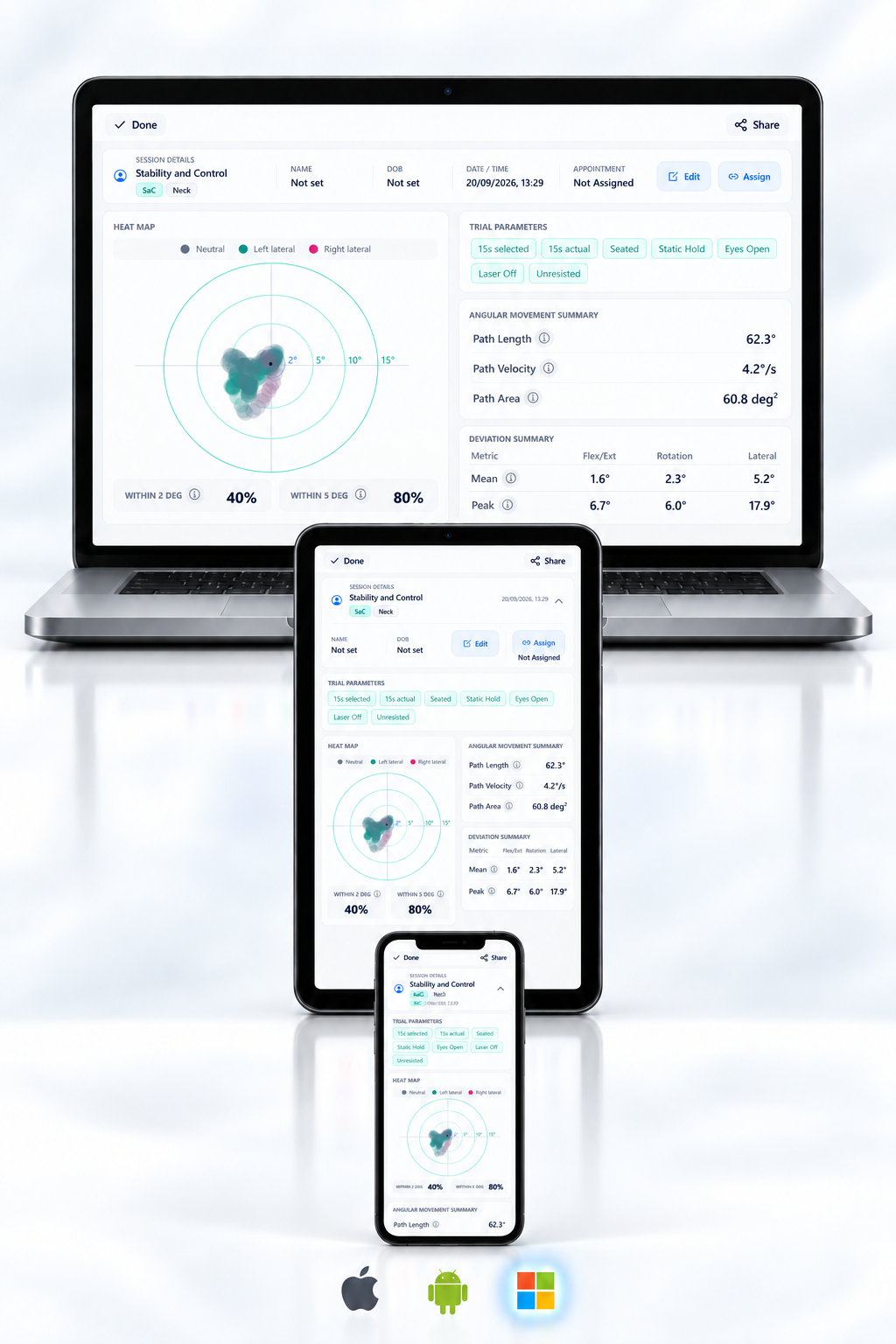

Hold a position and see how much your head moves around the reference.
HeadX Duo
Choose a 15, 20, 30 or 60 second hold and record the relevant task conditions with the session.
Review the movement heat map, mean and peak deviation, time within 2° and 5°, angular path length, velocity and area.
Run an assessment on its own or group assessments into an appointment. Add optional participant and session details, save the record to history and return to the individual summary.
Share an individual assessment PDF or a combined appointment PDF. Structured CSV exports can include session, Range of Motion, Joint Position Sense, Stability and Control, and limb-trial results. Raw sensor CSV is available when Research Mode is enabled.
Duo records the task in degrees for professional interpretation; it does not assign a universal pass or fail score.
Swipe to see more

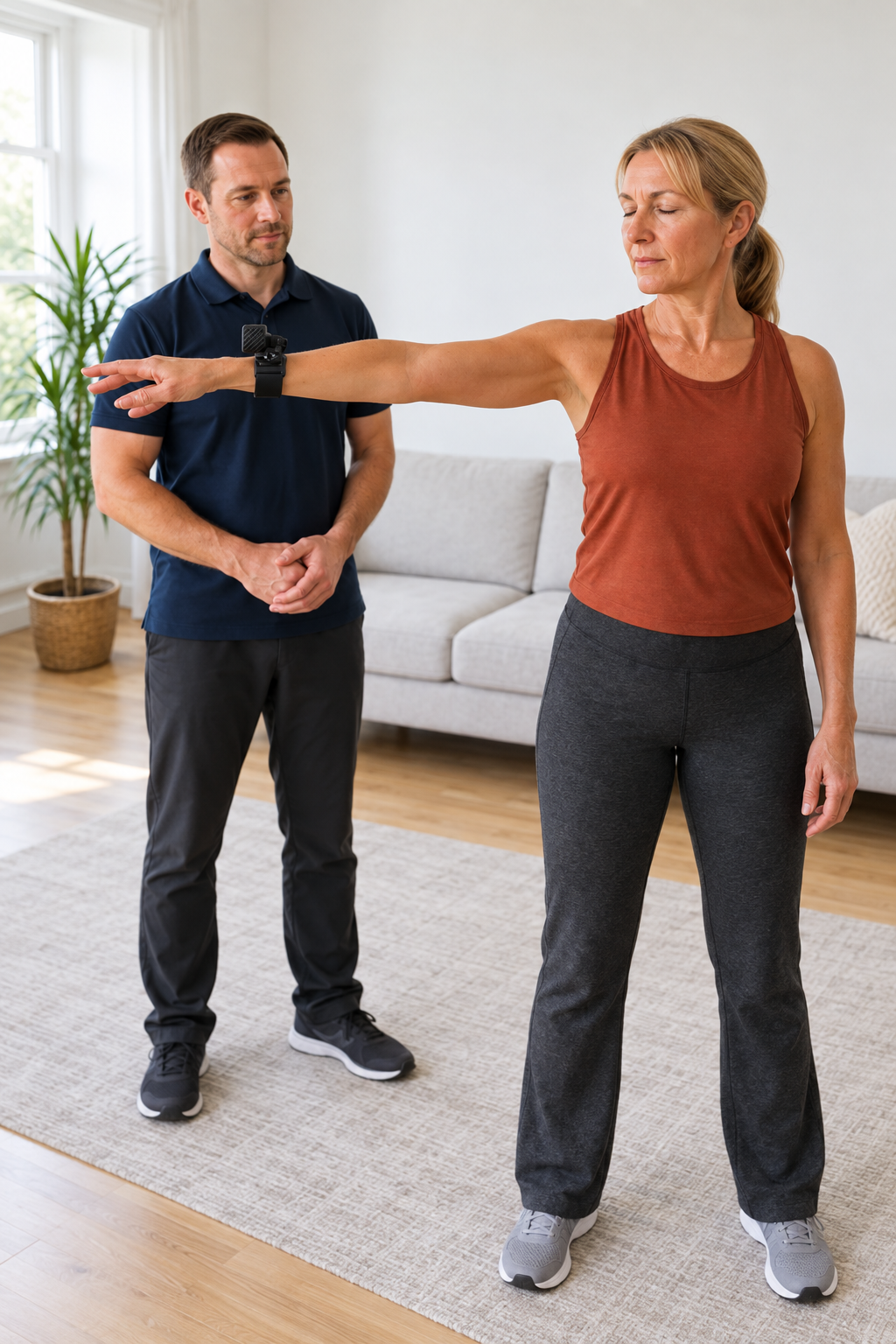

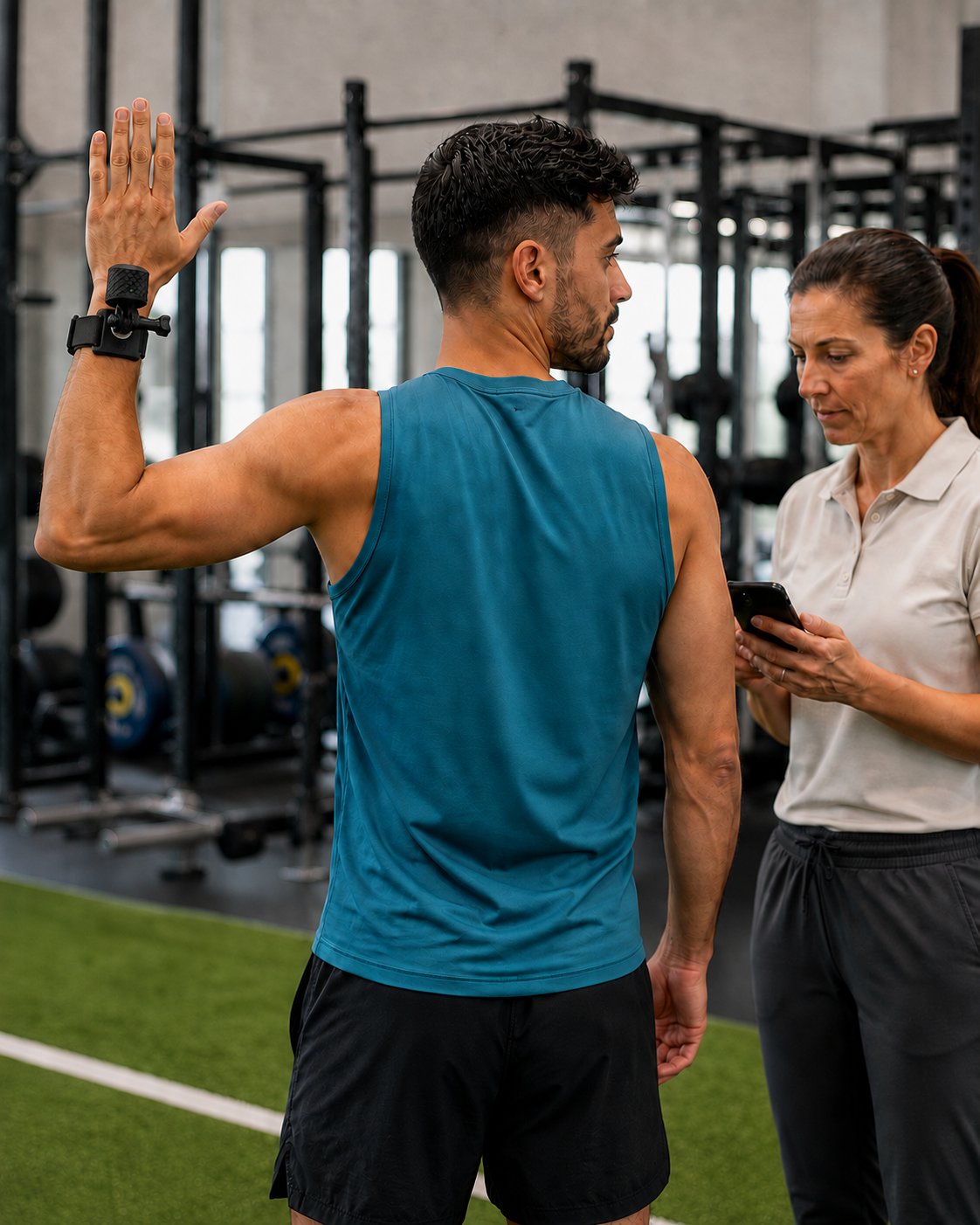

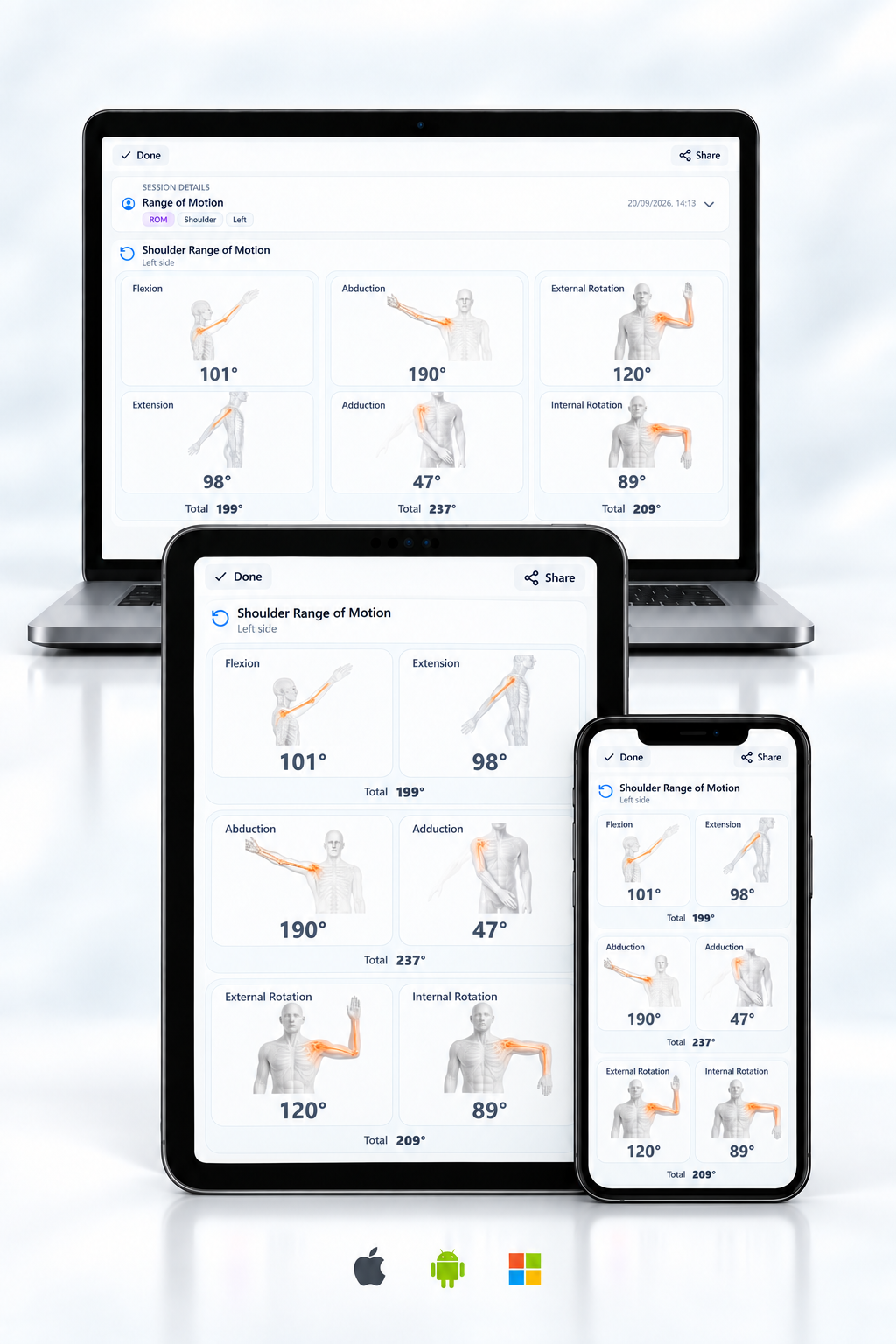

Record shoulder movements with Duo at the wrist. Review the recorded angles for each direction.
Flexion and extension, abduction and adduction, and internal and external rotation.
The saved summary shows the maximum angle recorded in each direction and the combined range where applicable.
Duo records angular change from the reference set for the session, ready for professional interpretation.
Run an assessment on its own or group assessments into an appointment. Add optional participant and session details, save the record to history and return to the individual summary.
Share an individual assessment PDF or a combined appointment PDF. Structured CSV exports can include session, Range of Motion, Joint Position Sense, Stability and Control, and limb-trial results. Raw sensor CSV is available when Research Mode is enabled.
Duo records the task in degrees for professional interpretation; it does not assign a universal pass or fail score.

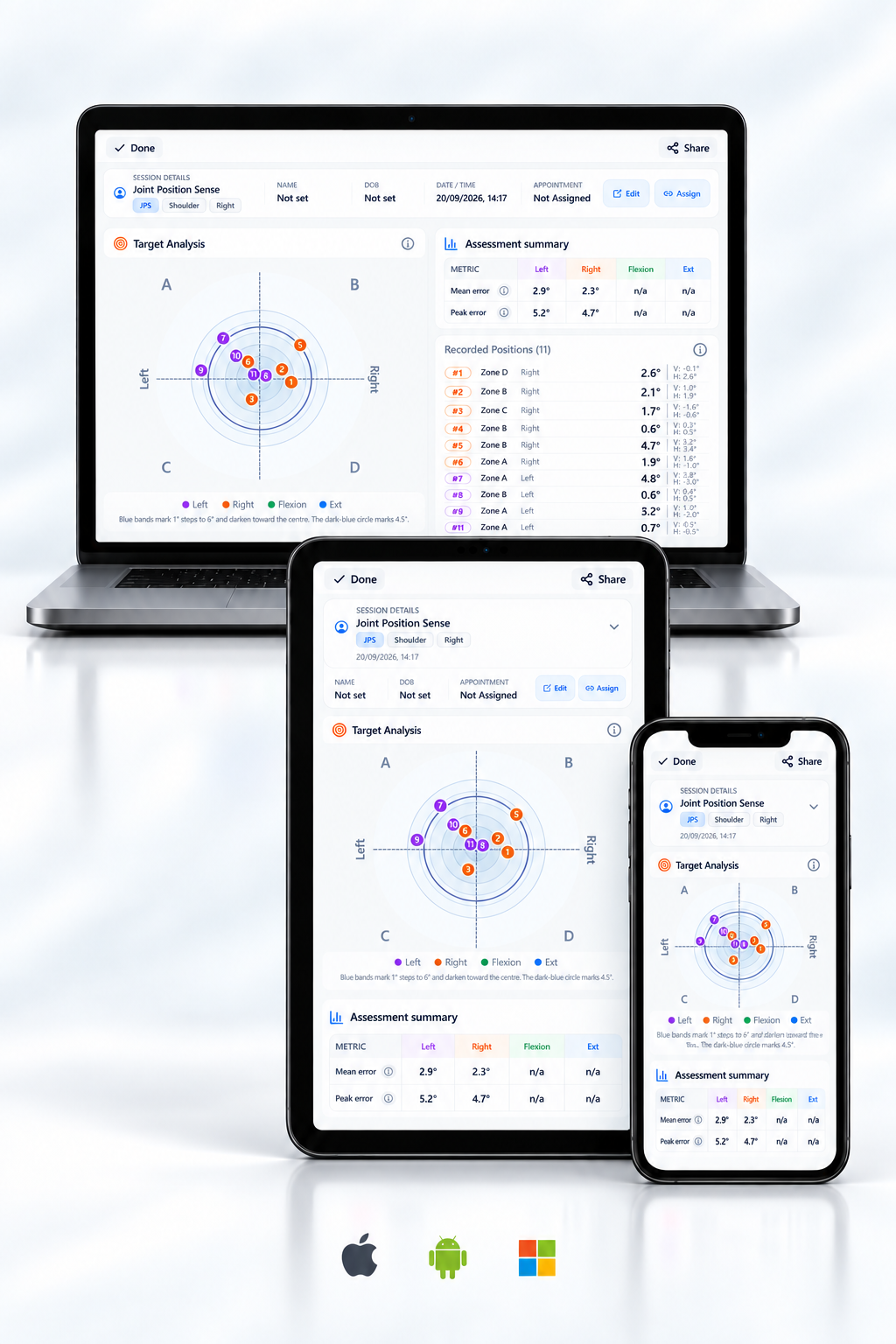

Move away from a reference, then return without visual cues. Review the difference across repeated attempts.
Beta workflow
Shoulder return-to-reference assessment is included in the current beta workflow set.
Review a target map of each attempt plus horizontal, vertical and overall angular difference, with mean and peak error grouped by movement direction.
Run an assessment on its own or group assessments into an appointment. Add optional participant and session details, save the record to history and return to the individual summary.
Share an individual assessment PDF or a combined appointment PDF. Structured CSV exports can include session, Range of Motion, Joint Position Sense, Stability and Control, and limb-trial results. Raw sensor CSV is available when Research Mode is enabled.
Duo records the task in degrees for professional interpretation; it does not assign a universal pass or fail score.

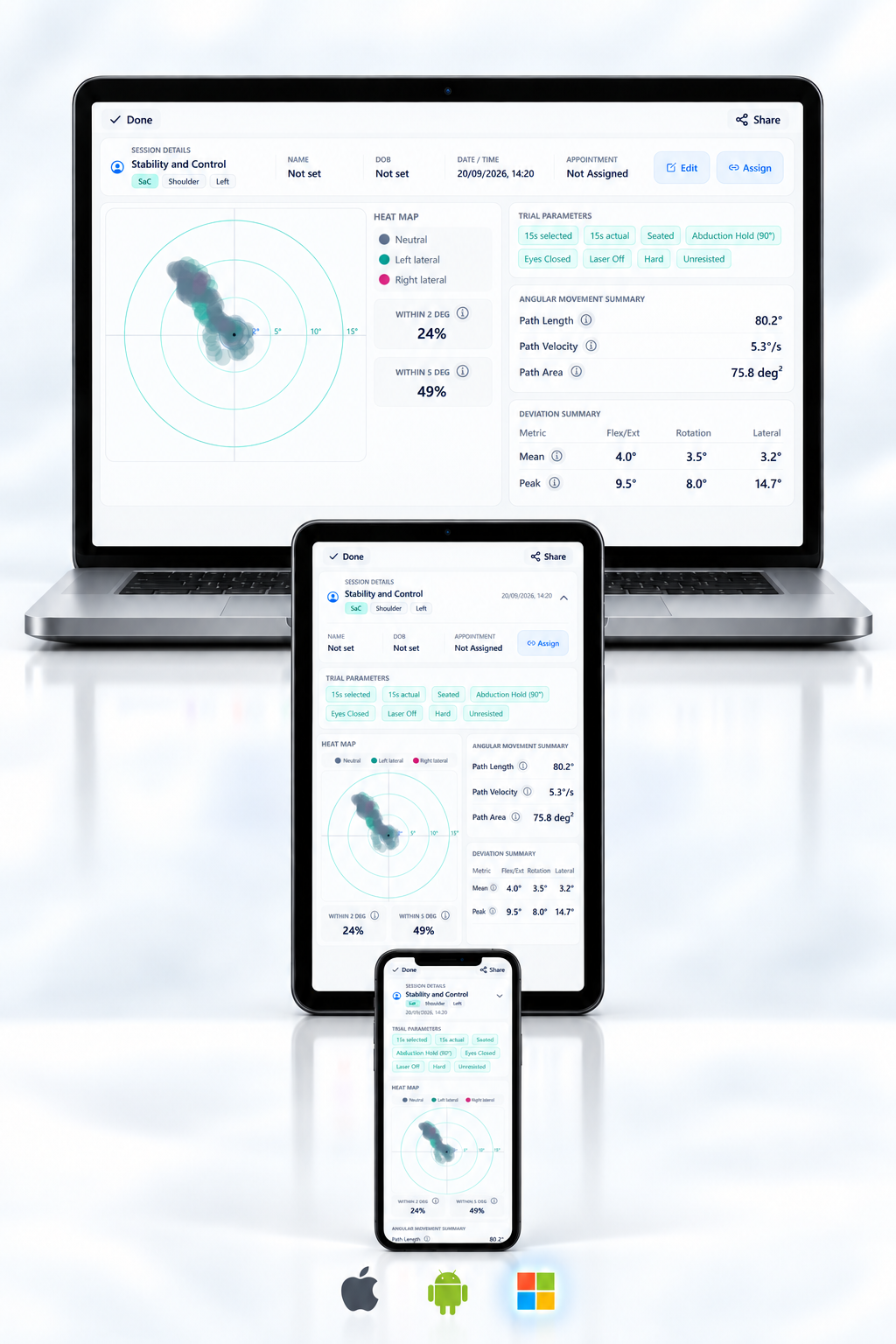

Hold the arm at 90° in front or to the side. Review movement during the hold.
Beta workflow
Choose a 15, 20, 30 or 60 second hold at 90° flexion or abduction. Record the relevant side and task conditions with the session.
Review the movement heat map, mean and peak deviation, time within 2° and 5°, angular path length, velocity and area.
Run an assessment on its own or group assessments into an appointment. Add optional participant and session details, save the record to history and return to the individual summary.
Share an individual assessment PDF or a combined appointment PDF. Structured CSV exports can include session, Range of Motion, Joint Position Sense, Stability and Control, and limb-trial results. Raw sensor CSV is available when Research Mode is enabled.
Duo records the task in degrees for professional interpretation; it does not assign a universal pass or fail score.
Swipe to see more

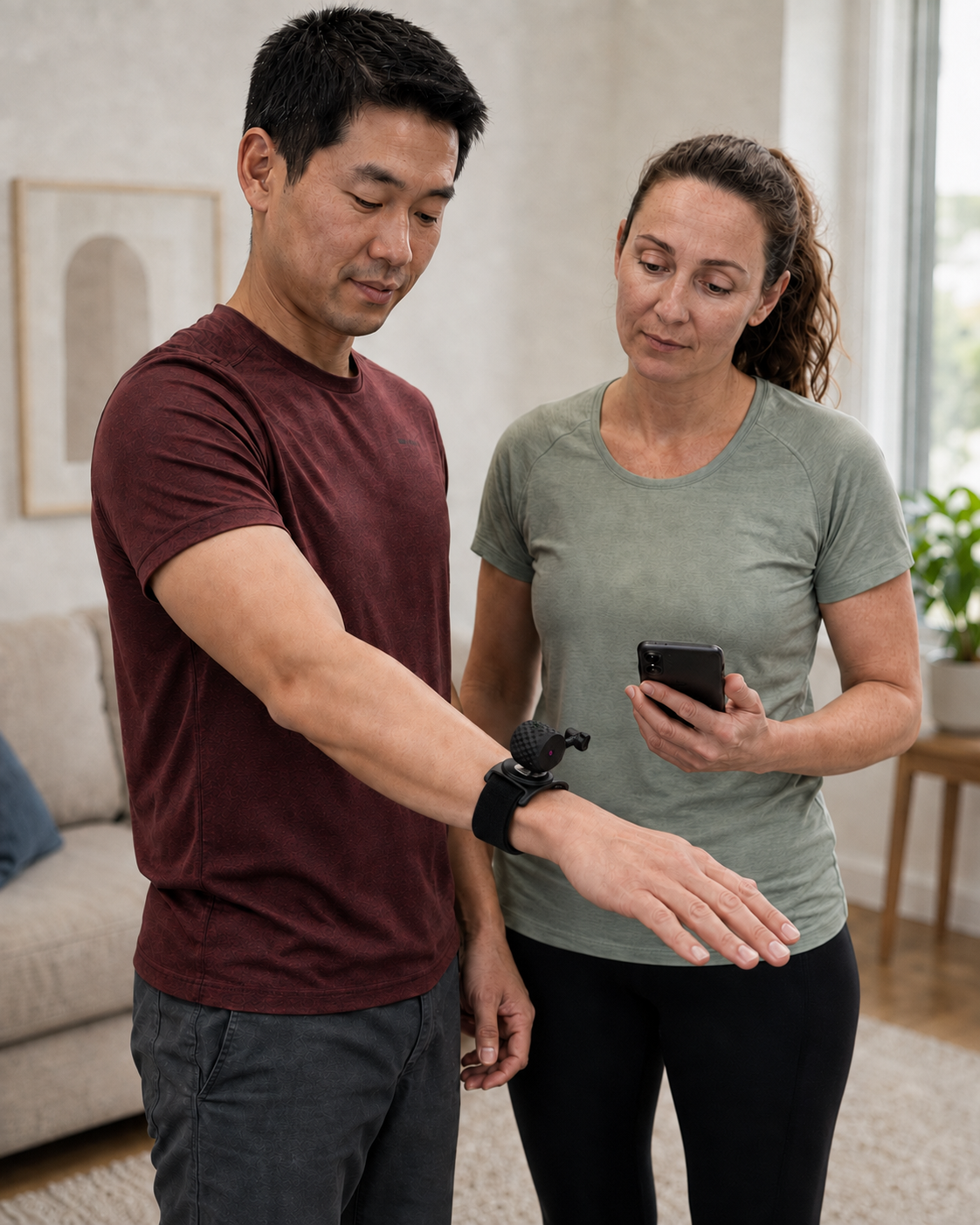

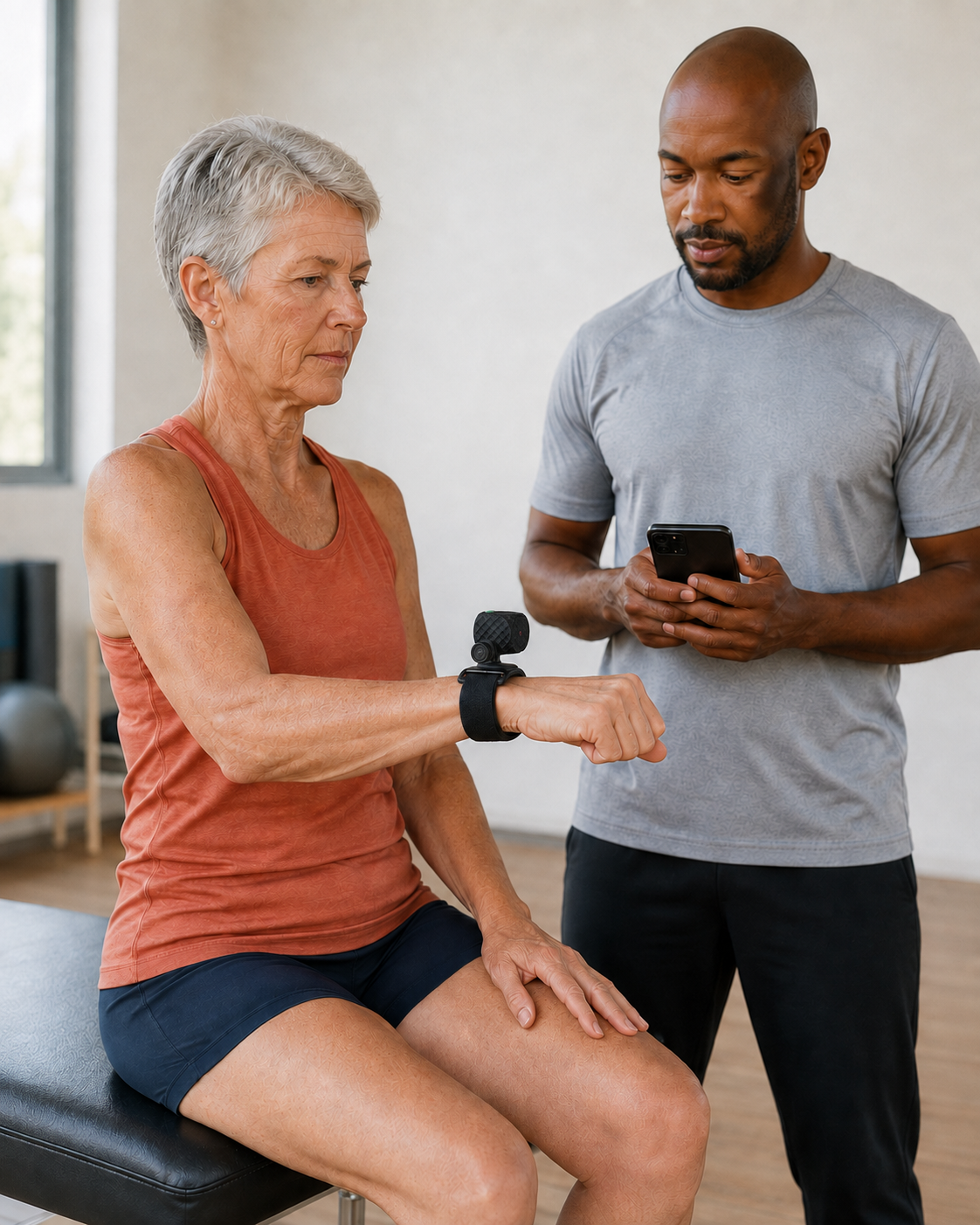

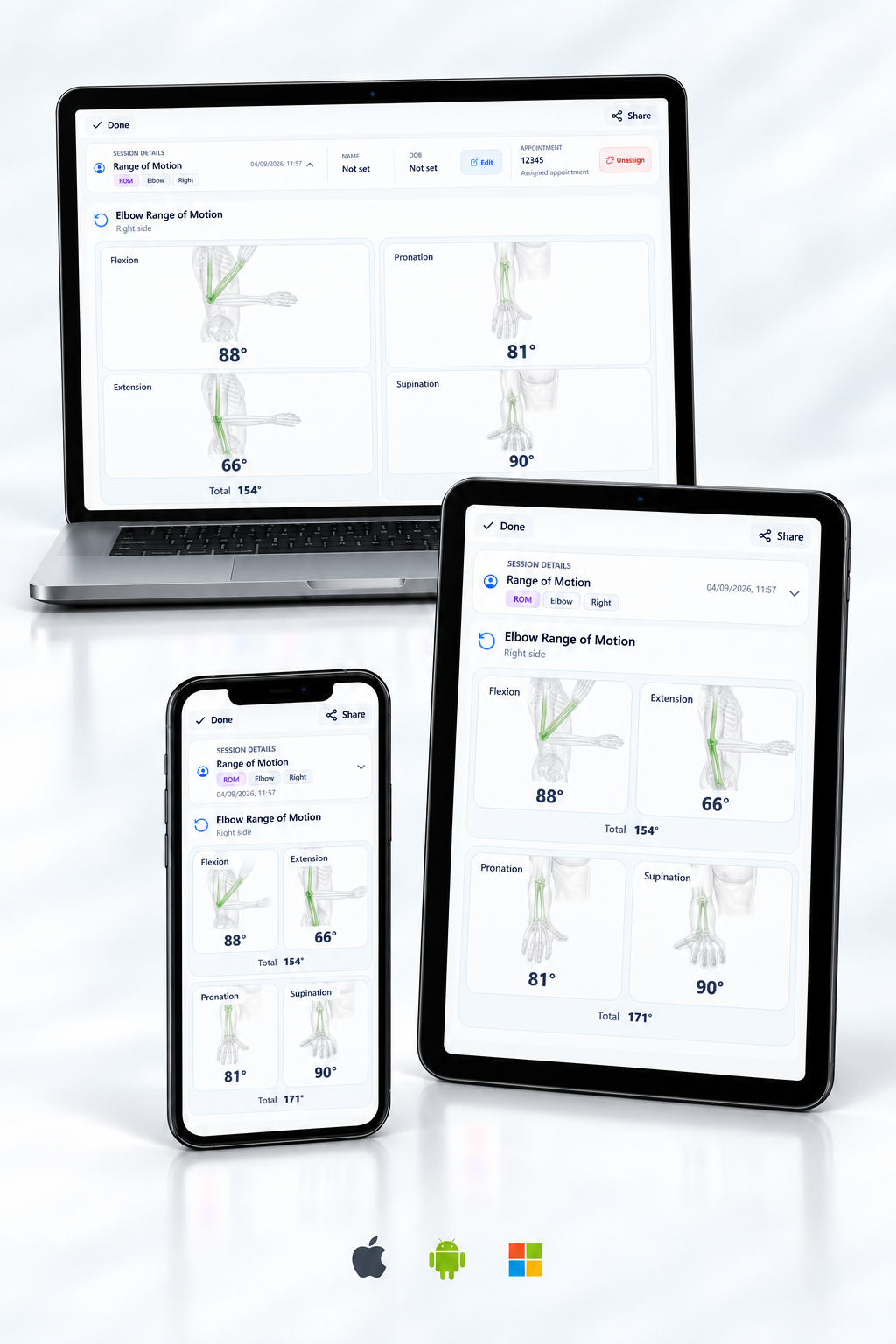

Record elbow bending and straightening, or forearm rotation, with Duo at the wrist.
Illustrative image
Elbow flexion and extension, and forearm pronation and supination.
The saved summary shows the maximum angle recorded in each direction and the combined range where applicable.
Duo records movement of the sensor-bearing segment from the reference set for the session.
Run an assessment on its own or group assessments into an appointment. Add optional participant and session details, save the record to history and return to the individual summary.
Share an individual assessment PDF or a combined appointment PDF. Structured CSV exports can include session, Range of Motion, Joint Position Sense, Stability and Control, and limb-trial results. Raw sensor CSV is available when Research Mode is enabled.
Duo records the task in degrees for professional interpretation; it does not assign a universal pass or fail score.
Swipe to see more

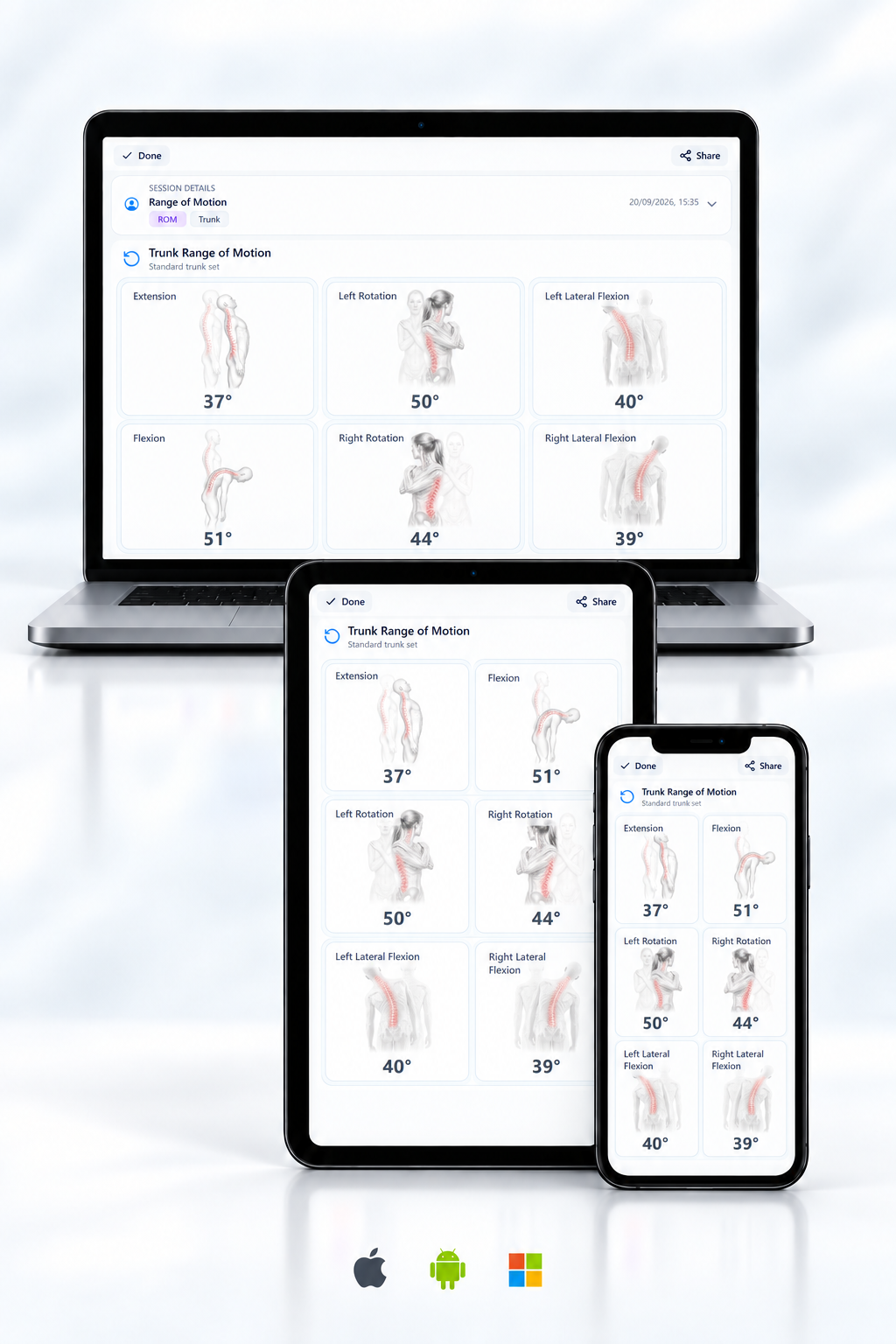

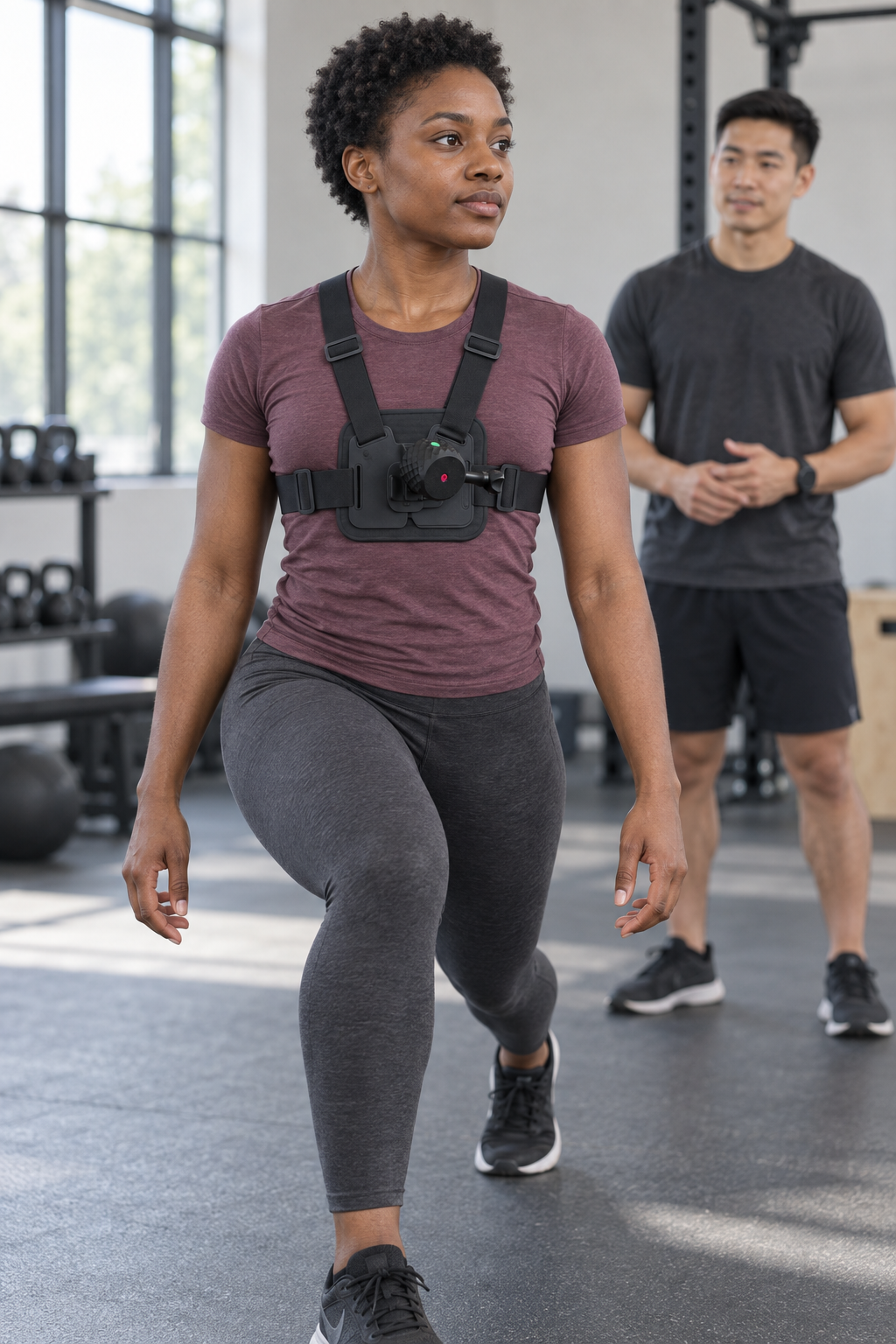

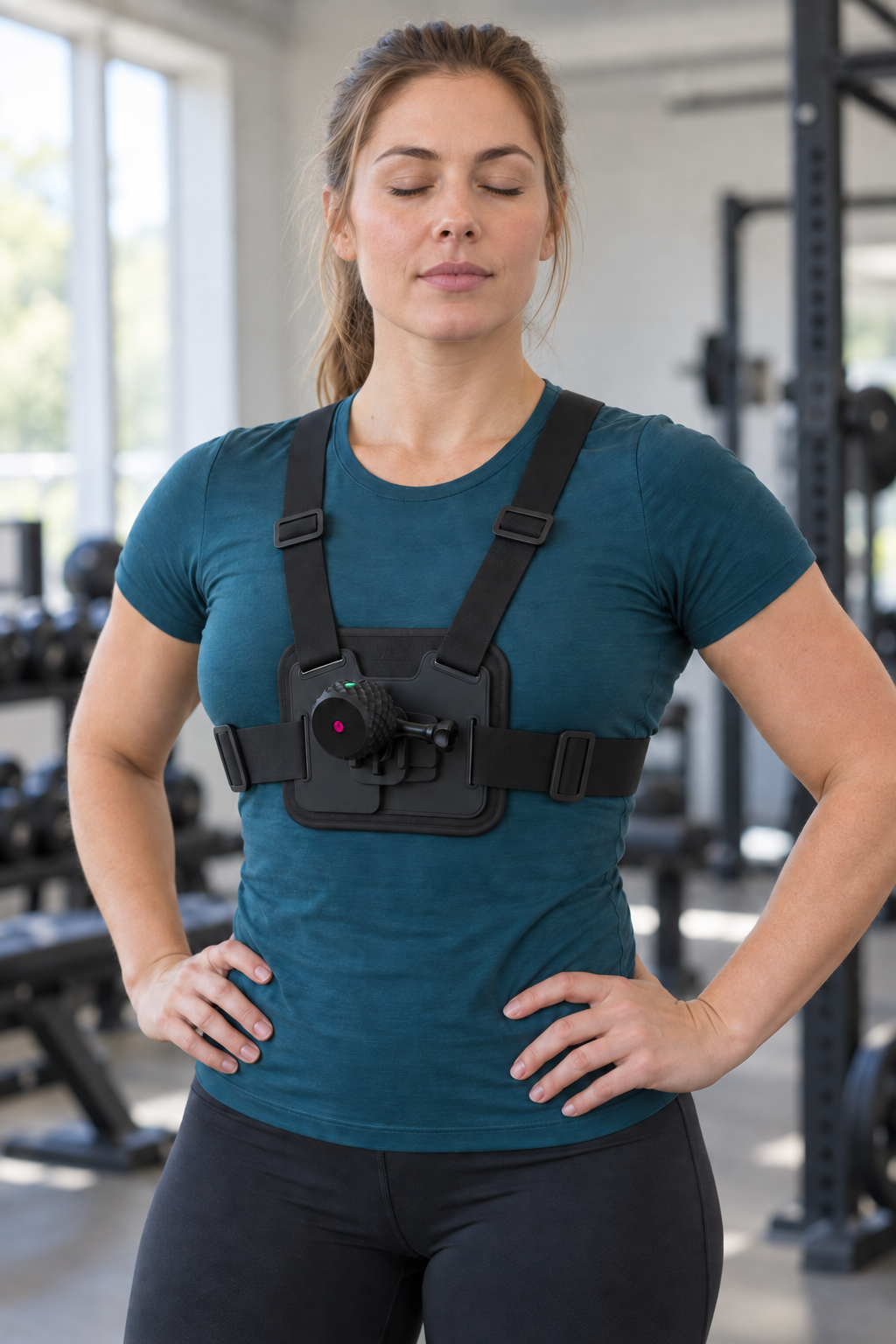

Record trunk bending and rotation with Duo on a chest mount.
Flexion and extension, left and right rotation, and left and right lateral flexion.
The saved summary shows the maximum angle recorded in each direction and the combined range where applicable.
Duo records movement of the sensor-bearing segment from the reference set for the session.
Run an assessment on its own or group assessments into an appointment. Add optional participant and session details, save the record to history and return to the individual summary.
Share an individual assessment PDF or a combined appointment PDF. Structured CSV exports can include session, Range of Motion, Joint Position Sense, Stability and Control, and limb-trial results. Raw sensor CSV is available when Research Mode is enabled.
Duo records the task in degrees for professional interpretation; it does not assign a universal pass or fail score.

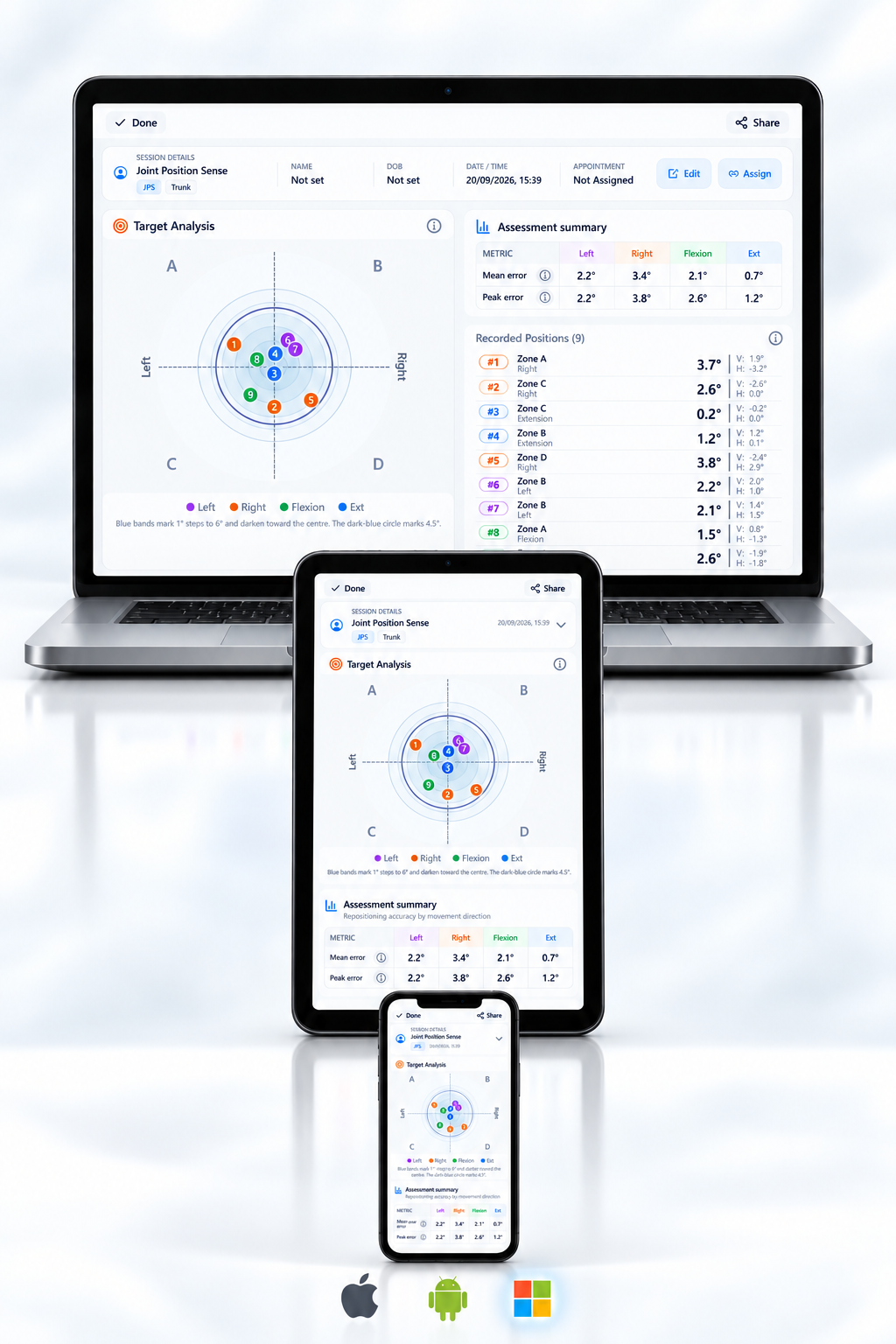

Move away from a reference, then return without visual cues. Compare repeated attempts.
Beta workflow
Trunk return-to-reference assessment is included in the current beta workflow set.
Review a target map of each attempt plus horizontal, vertical and overall angular difference, with mean and peak error grouped by movement direction.
Run an assessment on its own or group assessments into an appointment. Add optional participant and session details, save the record to history and return to the individual summary.
Share an individual assessment PDF or a combined appointment PDF. Structured CSV exports can include session, Range of Motion, Joint Position Sense, Stability and Control, and limb-trial results. Raw sensor CSV is available when Research Mode is enabled.
Duo records the task in degrees for professional interpretation; it does not assign a universal pass or fail score.

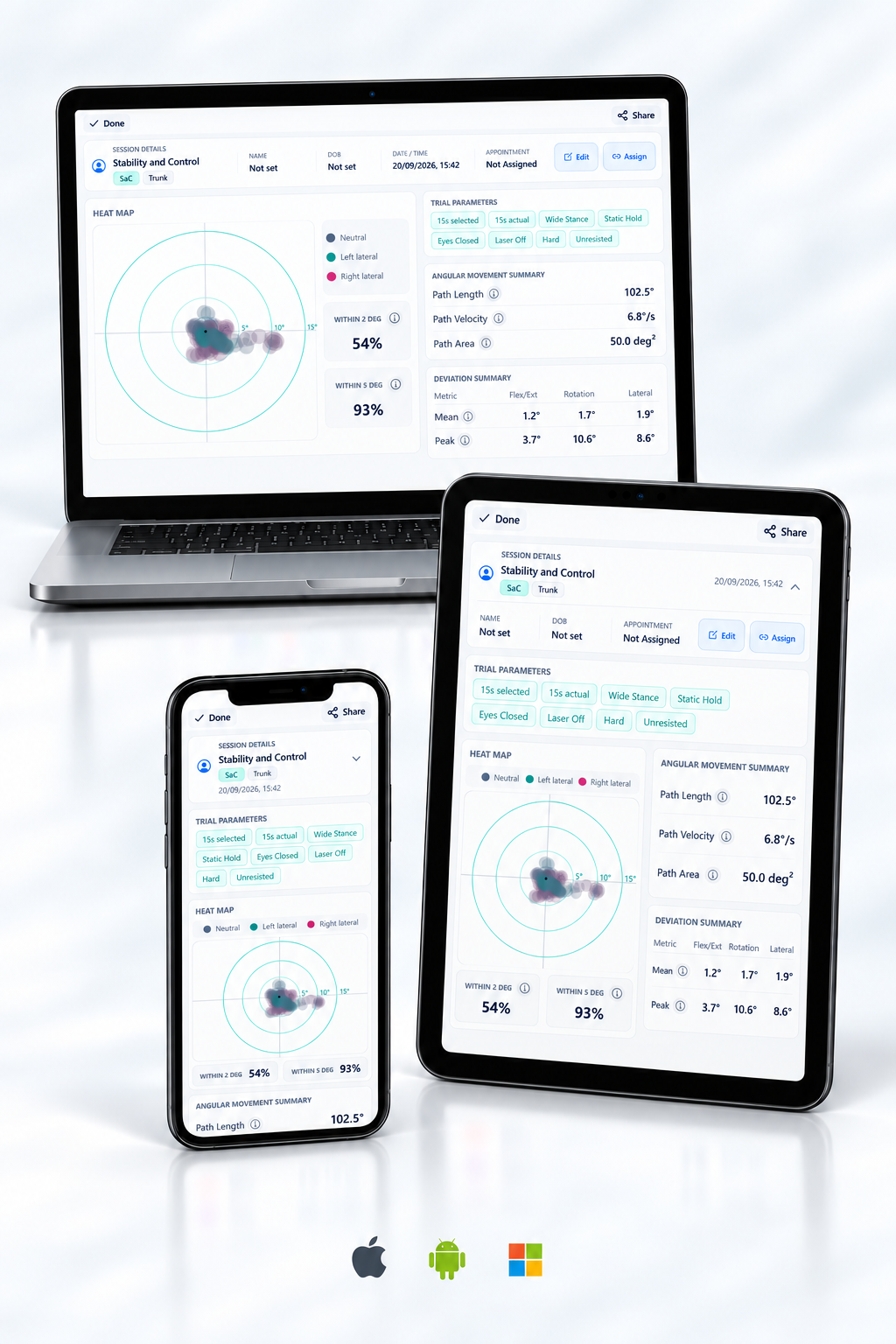

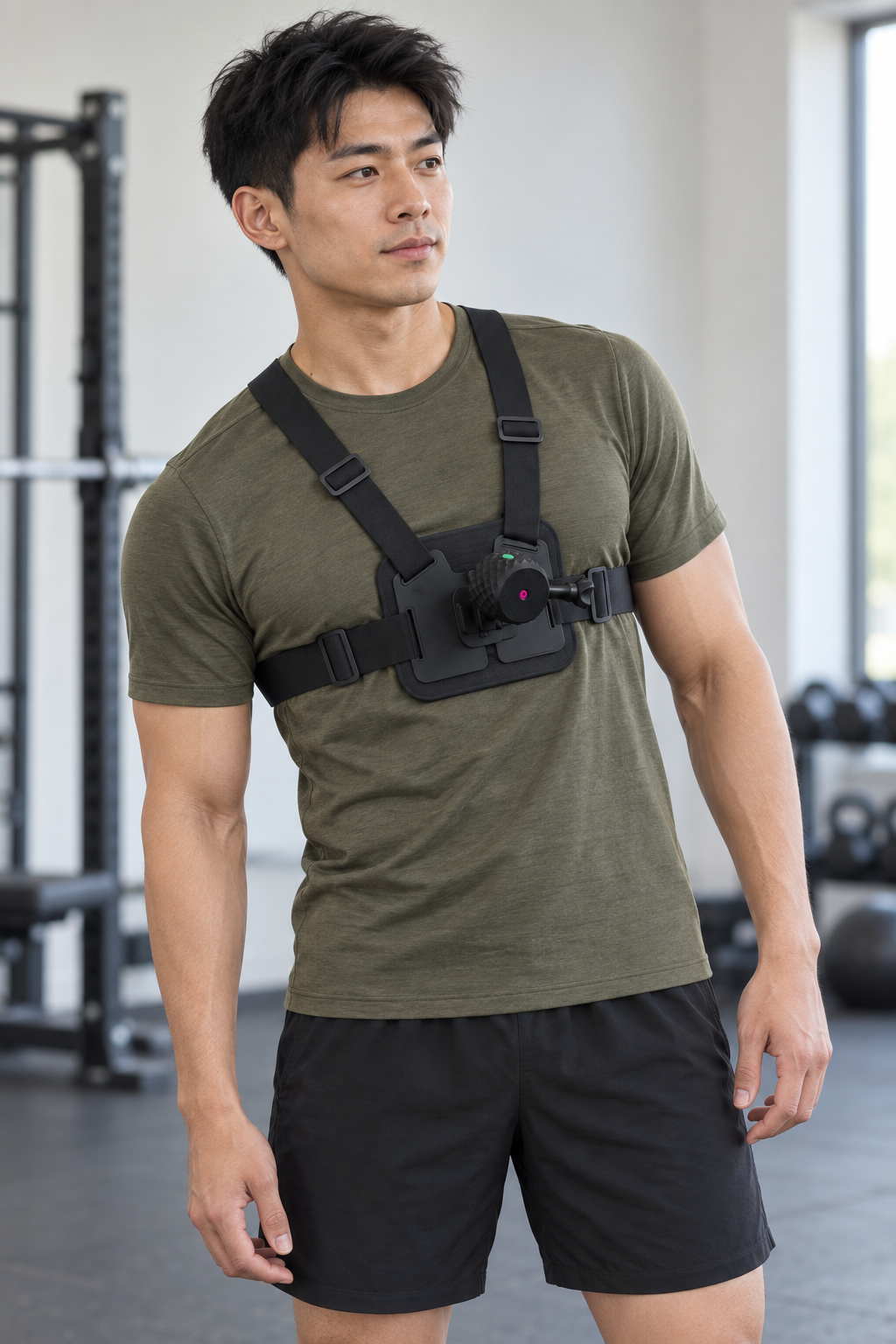

Record a timed hold or movement task and review how the trunk moves around the reference.
Beta workflow
Trunk rotation, side-to-side sway, reach, static marching and static hold. Choose 15, 20, 30 or 60 seconds and record the task conditions with the session.
Review the movement heat map, mean and peak deviation, time within 2° and 5°, angular path length, velocity and area.
Run an assessment on its own or group assessments into an appointment. Add optional participant and session details, save the record to history and return to the individual summary.
Share an individual assessment PDF or a combined appointment PDF. Structured CSV exports can include session, Range of Motion, Joint Position Sense, Stability and Control, and limb-trial results. Raw sensor CSV is available when Research Mode is enabled.
Duo records the task in degrees for professional interpretation; it does not assign a universal pass or fail score.
Swipe to see more

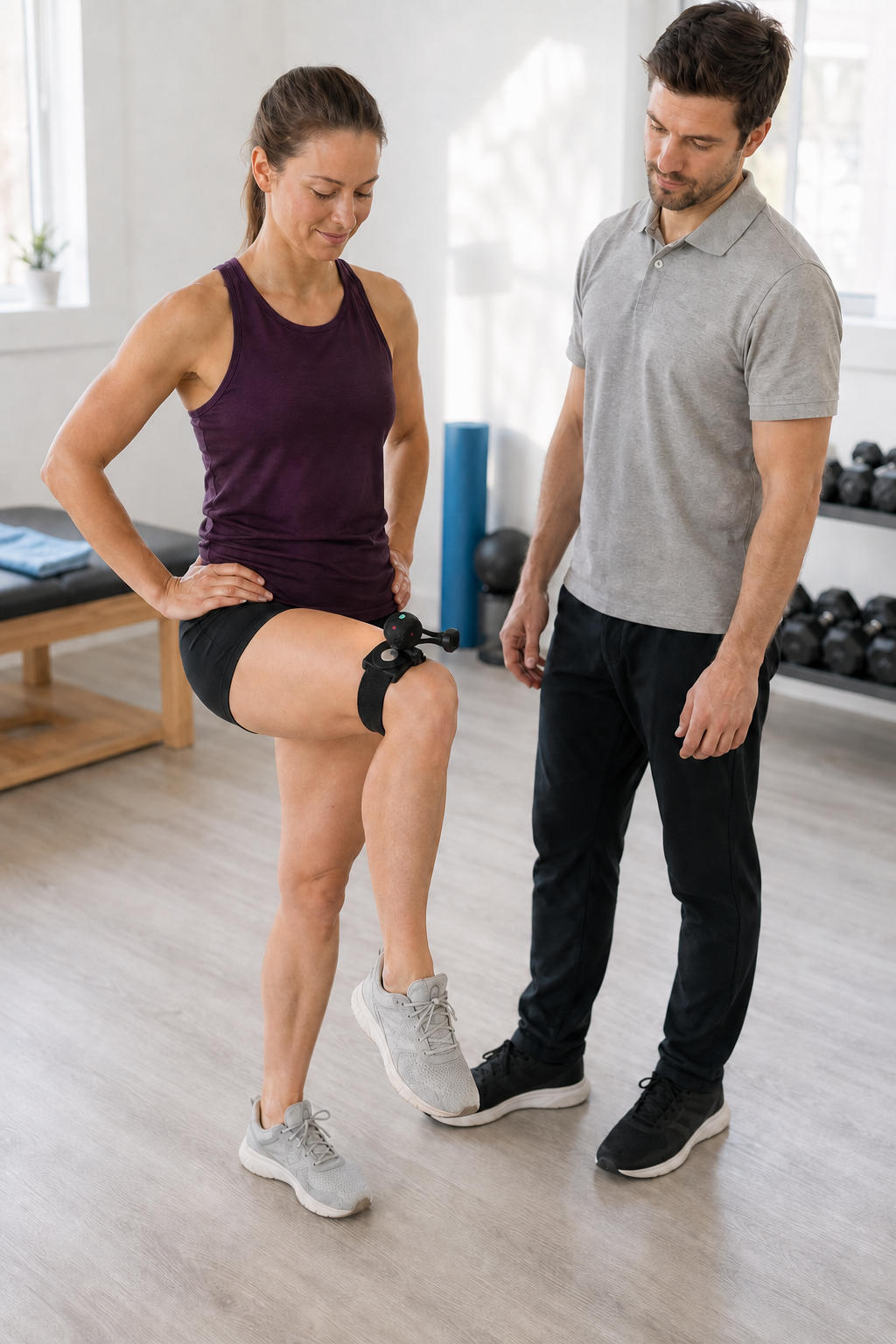

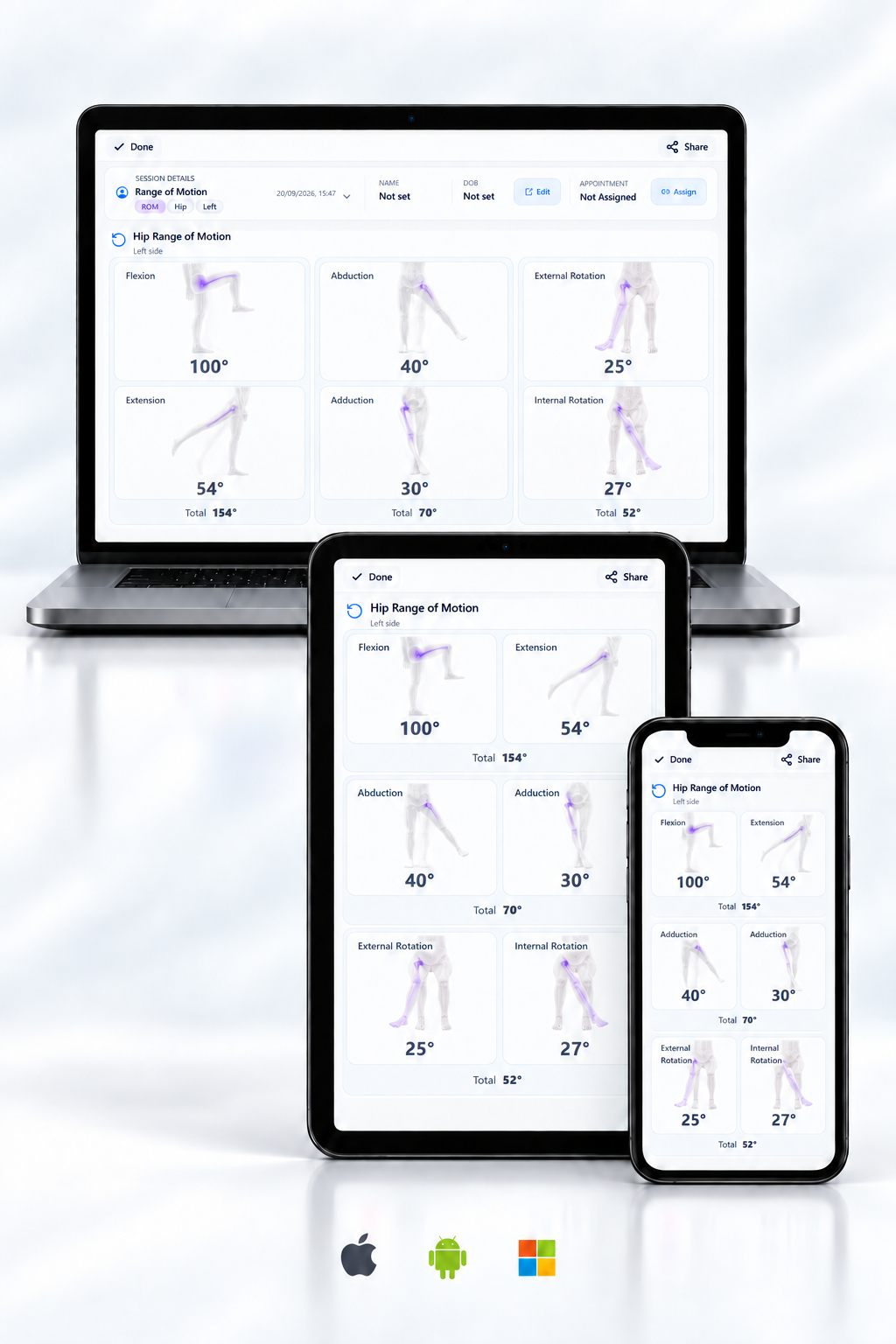

Record hip movements with Duo on the thigh. Review the recorded angles for each direction.
Illustrative hip assessment setup.
Flexion and extension, abduction and adduction, and internal and external rotation.
The saved summary shows the maximum angle recorded in each direction and the combined range where applicable.
Duo records movement of the sensor-bearing segment from the reference set for the session.
Run an assessment on its own or group assessments into an appointment. Add optional participant and session details, save the record to history and return to the individual summary.
Share an individual assessment PDF or a combined appointment PDF. Structured CSV exports can include session, Range of Motion, Joint Position Sense, Stability and Control, and limb-trial results. Raw sensor CSV is available when Research Mode is enabled.
Duo records the task in degrees for professional interpretation; it does not assign a universal pass or fail score.
Swipe to see more

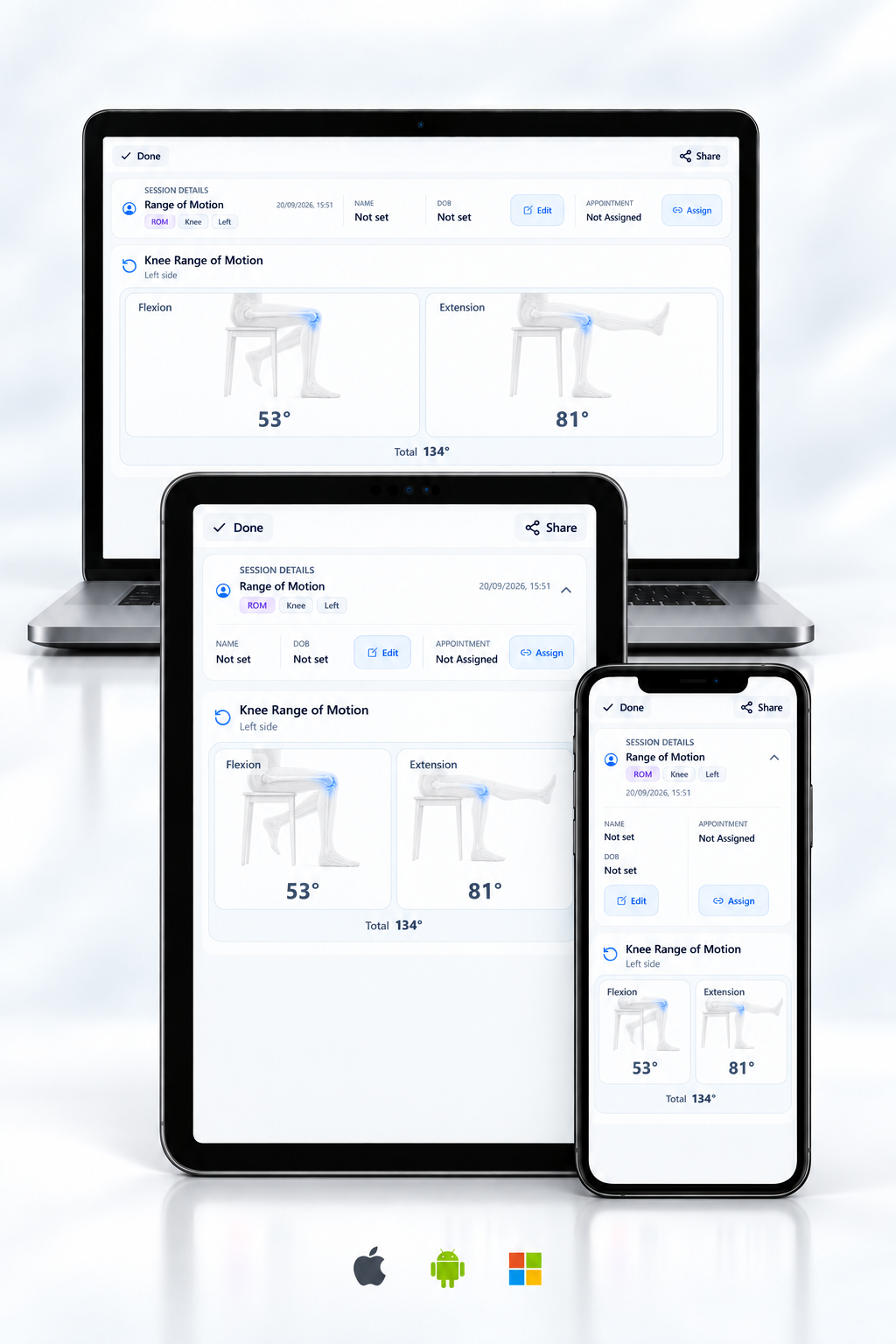

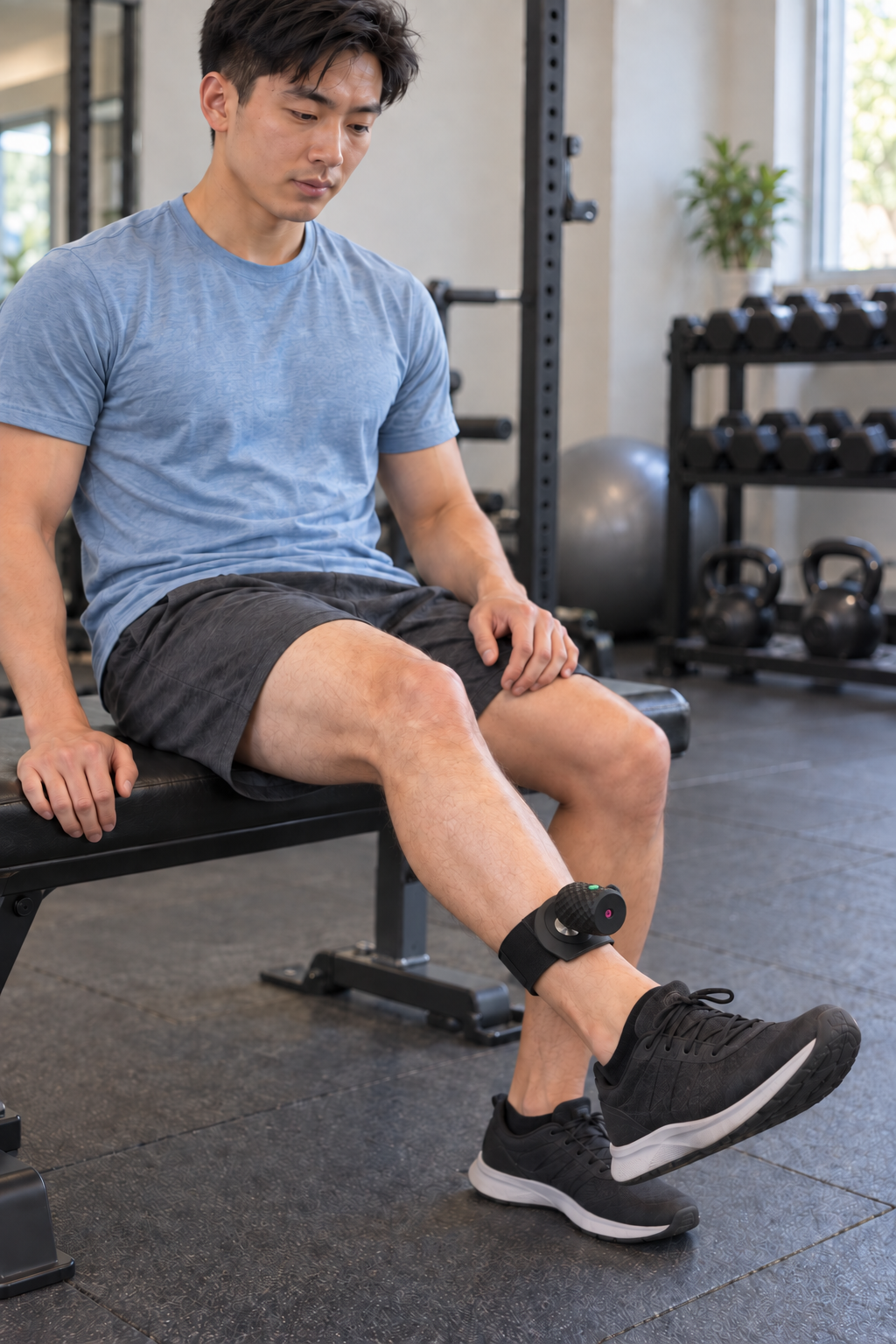

Record knee bending and straightening with Duo strapped above the ankle.
Illustrative knee assessment setup.
Knee flexion and extension.
The saved summary shows the maximum angle recorded in each direction and the combined range where applicable.
Duo records movement of the sensor-bearing segment from the reference set for the session.
Run an assessment on its own or group assessments into an appointment. Add optional participant and session details, save the record to history and return to the individual summary.
Share an individual assessment PDF or a combined appointment PDF. Structured CSV exports can include session, Range of Motion, Joint Position Sense, Stability and Control, and limb-trial results. Raw sensor CSV is available when Research Mode is enabled.
Duo records the task in degrees for professional interpretation; it does not assign a universal pass or fail score.
Experience with HeadX Duo in clinical practice.
